SHAP key driver gene analysis

shap_key_drivers.Rmd

In this tutorial, we demonstrate how to identify the genes that best separate two groups of cells using SHAP (SHapley Additive exPlanations) values. We refer to these genes as key driver genes. Rather than testing each gene independently as in differential expression, compact trains a gradient-boosted decision tree classifier (XGBoost) to distinguish two groups of cells based on their gene expression, and then uses SHAP to measure how much each gene contributes to that classification. This gives a ranking of genes by their importance in a single multivariate model that considers all genes jointly.

For this tutorial we use the mouse hematopoiesis dataset from Kamimoto et al. 2023 (the CellOracle study), where cells differentiate along two branches: the granulocyte-monocyte (GM) lineage and the megakaryocyte-erythroid (ME) lineage. Our goal is to find the genes that most strongly distinguish cells committing to the GM lineage from those committing to the ME lineage.

Contents

  1. What is SHAP?
  2. Load the dataset
  3. Visualizing the two lineages (optional)
  4. Define the groups for comparison
  5. Identify SHAP key driver genes
  6. Visualize the SHAP results
  7. Interpretation

What is SHAP?

To identify genes that contribute to distinguishing cellular states, compact trains an XGBoost (extreme gradient boosting) classifier using gene expression values from the Seurat object, and then computes SHAP (SHapley Additive exPlanations) values to quantify the contribution of each gene to the model’s predictions. SHAP values are grounded in cooperative game theory: each gene is assigned a feature-attribution score that accounts for both its independent effect and its interactions with other genes. For each cell or nucleus, a local SHAP value is computed for every input gene using the SHAPforxgboost framework.

Global gene importance is defined as the mean absolute SHAP value across all cells:

Ij=1n∑i=1n|ϕj(i)|I_j = \frac{1}{n} \sum_{i=1}^{n} \left| \phi_j^{(i)} \right|

where ϕj(i)\phi_j^{(i)} is the SHAP value for gene jj in cell ii (the superscript is a cell index, not an exponent) and nn is the total number of cells. Genes are ranked by IjI_j, and the top-ranked genes are prioritized as candidate key drivers of the transcriptional state or perturbation response being compared.

Interpretation — what SHAP-prioritized drivers mean

SHAP-prioritized drivers are genes whose expression patterns are most predictive of the specified state or condition in the trained model. They may represent upstream regulators, downstream transcriptional consequences, or correlated markers, and should therefore be interpreted as candidate predictive drivers rather than direct causal regulators.

Load the dataset

First we load the single-cell dataset and the required R libraries for this tutorial. This dataset has already been processed with hdWGCNA to construct a transcription-factor co-expression network, and expression values have been imputed and stored in the imputed assay.

# single-cell analysis package
library(Seurat)

# plotting and data science packages
library(tidyverse)
library(cowplot)
library(patchwork)
library(viridis)

# co-expression network analysis package
library(hdWGCNA)

# compact
library(compact)

# machine learning backend used by the SHAP analysis
library(xgboost)

# using the cowplot theme for ggplot
theme_set(theme_cowplot())

# set random seed for reproducibility
set.seed(12345)

# load the dataset
seurat_obj <- readRDS('celloracle_tf_net.rds')

seurat_obj
An object of class Seurat
6902 features across 2730 samples within 2 assays
Active assay: RNA (3451 features, 0 variable features)
 2 layers present: counts, data
 1 other assay present: imputed
 3 dimensional reductions calculated: pca, draw_graph_fa, diffmap

The object contains two assays: the raw RNA assay and an imputed assay. We will use the imputed expression values for the SHAP analysis, since smoothed values give the classifier a cleaner signal in sparse single-cell data.

Visualizing the two lineages (optional)

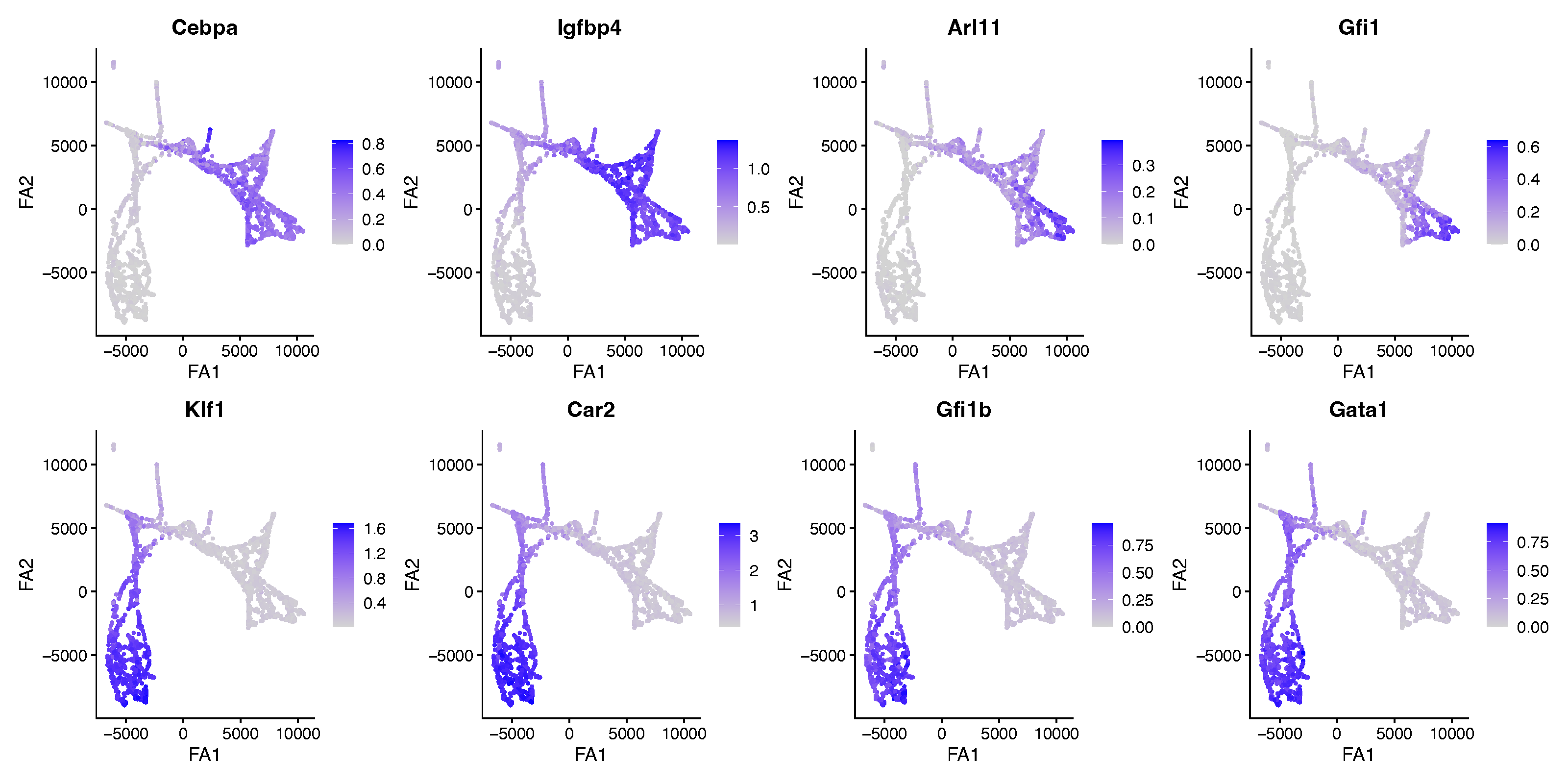

Before running the key driver analysis, it is helpful to confirm that the two lineages are separated in the data and to inspect a few canonical marker genes. Here we plot known GM-lineage markers (Cebpa, Igfbp4, Arl11, Gfi1) and ME-lineage markers (Klf1, Car2, Gfi1b, Gata1) on the ForceAtlas2 (draw_graph_fa) embedding, using the imputed assay.

# set imputed as the active assay for plotting marker expression
DefaultAssay(seurat_obj) <- "imputed"

# GM-lineage markers
gm_markers <- c("Cebpa", "Igfbp4", "Arl11", "Gfi1")

# ME-lineage markers
me_markers <- c("Klf1", "Car2", "Gfi1b", "Gata1")

# helper to make a consistent FeaturePlot for each gene
plot_marker <- function(gene){
  FeaturePlot(
    seurat_obj,
    features = gene,
    reduction = "draw_graph_fa",
    pt.size = 0.5
  ) + labs(x = "FA1", y = "FA2")
}

# GM markers on top row, ME markers on bottom row
gm_plots <- wrap_plots(lapply(gm_markers, plot_marker), nrow = 1)
me_plots <- wrap_plots(lapply(me_markers, plot_marker), nrow = 1)

gm_plots / me_plots

The GM markers (top row) and ME markers (bottom row) light up in opposite regions of the embedding, confirming that the two lineages occupy distinct branches.

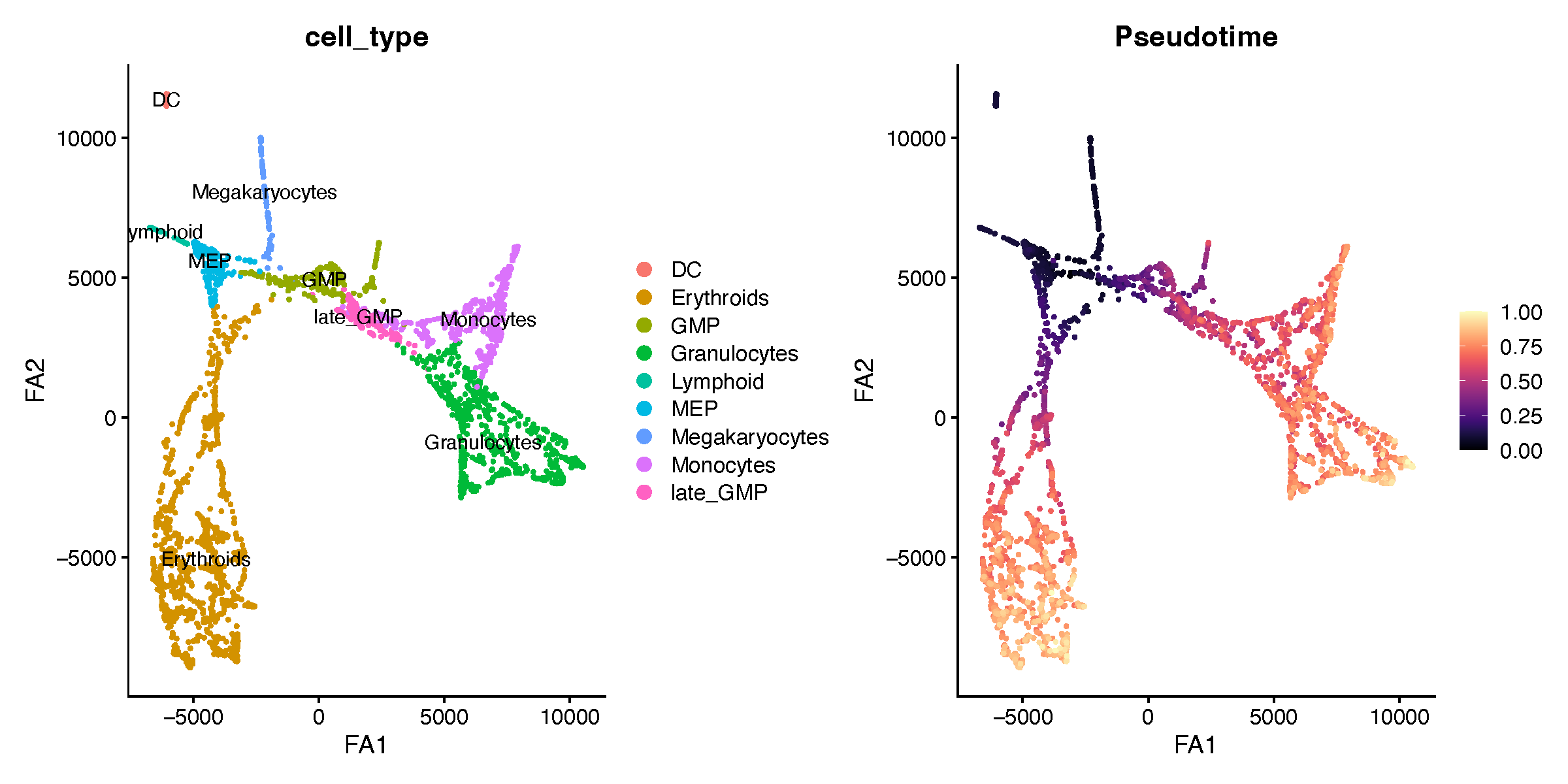

We can also visualize the cell type annotations and the pseudotime ordering to see the overall structure of the differentiation trajectory.

# plot cell type annotations
DefaultAssay(seurat_obj) <- "RNA"
p1 <- DimPlot(
  seurat_obj,
  reduction = "draw_graph_fa",
  group.by = "cell_type",
  pt.size = 0.5,
  label = TRUE
) + labs(x = "FA1", y = "FA2")

# plot pseudotime
seurat_obj$Pseudotime <- as.numeric(seurat_obj$Pseudotime)
p2 <- FeaturePlot(
  seurat_obj,
  features = "Pseudotime",
  reduction = "draw_graph_fa",
  pt.size = 0.5,
  order = TRUE
) +
  scale_color_viridis(option = "magma") +
  labs(x = "FA1", y = "FA2")

p1 | p2

Define the groups for comparison

The SHAP key driver analysis compares two groups of cells, specified by a column in the Seurat object’s metadata. Here we create a single Lineage column that labels each cell as Lineage_GM, Lineage_ME, or False (cells that belong to neither lineage).

obj <- seurat_obj

# start with all cells unassigned
obj$Lineage <- "False"

# label cells belonging to each lineage
obj$Lineage[obj$Lineage_ME %in% "True"] <- "Lineage_ME"
obj$Lineage[obj$Lineage_GM %in% "True"] <- "Lineage_GM"

table(obj$Lineage)
     False Lineage_GM Lineage_ME
       139       1315       1276
Tip: how the False cells are handled

FindShapKeyDriver only uses the cells in ident.1 and ident.2, so the False cells are automatically ignored in the comparison below. If you prefer, you can subset() the object to the two lineages first.

Identify SHAP key driver genes

Now we run FindShapKeyDriver to train the classifier and compute SHAP values. FindShapKeyDriver reads expression from the default assay, so we first set the active assay to imputed; by default it uses the data layer of that assay (controlled by the expr_layer argument). The conditions argument names the metadata column that defines the groups. Here we run a pairwise comparison by supplying ident.1 and ident.2; ident.1 is treated as the positive class. (For a one-versus-rest comparison, supply set_case instead of the two ident arguments.) We pass all genes in the object as candidate features via variable_genes, and out_dir specifies where results are written.

# use imputed expression values as features
DefaultAssay(obj) <- "imputed"

obj <- FindShapKeyDriver(
  obj,
  conditions = "Lineage",
  ident.1 = "Lineage_GM",
  ident.2 = "Lineage_ME",
  variable_genes = rownames(seurat_obj),
  out_dir = "Lineage_GM_vs_Lineage_ME/"
)

The SHAP results are stored on the returned object in obj@misc$shap — this is where the plotting functions below look for them, so be sure to assign the output back to obj. The slot includes shap_summary (mean absolute SHAP per gene, sorted), key_drivers (the top-ranked genes), and shap_long (per-cell, per-gene SHAP values). If out_dir is set, the same results are also written to disk under a shap_output_<mode>/ subfolder (here, Lineage_GM_vs_Lineage_ME/shap_output_full/), which can be reloaded later with ReloadShapOutput().

By default FindShapKeyDriver runs in mode = "full", training on all cells. You can instead set mode = "split" for a train/test split or mode = "cv" for k-fold cross-validation; in those two modes a held-out AUC is reported (when the pROC package is installed) as a measure of how separable the two groups are. Note that the cells over which SHAP values are computed depend on the mode: all cells in "full", the held-out test cells in "split", and the pooled held-out folds in "cv".

Ranking is by mean absolute SHAP value, so the shap_summary table is always non-negative — the direction of each gene’s effect (toward the GM or the ME lineage) is read off the beeswarm plot below, where per-cell SHAP values keep their sign. Because ident.1 is the positive class, positive SHAP values push a cell toward the GM lineage and negative values toward the ME lineage.

Visualize the SHAP results

Both plotting functions return a ggplot object, so you can save them with ggsave() as shown below. Alternatively, each function can write the figure for you if you set save_plot = TRUE together with out_dir and filename — in that case PDFs are written with the cairo device, and BeeswarmplotShap rasterizes the point layer, which keeps file sizes manageable when plotting many cells.

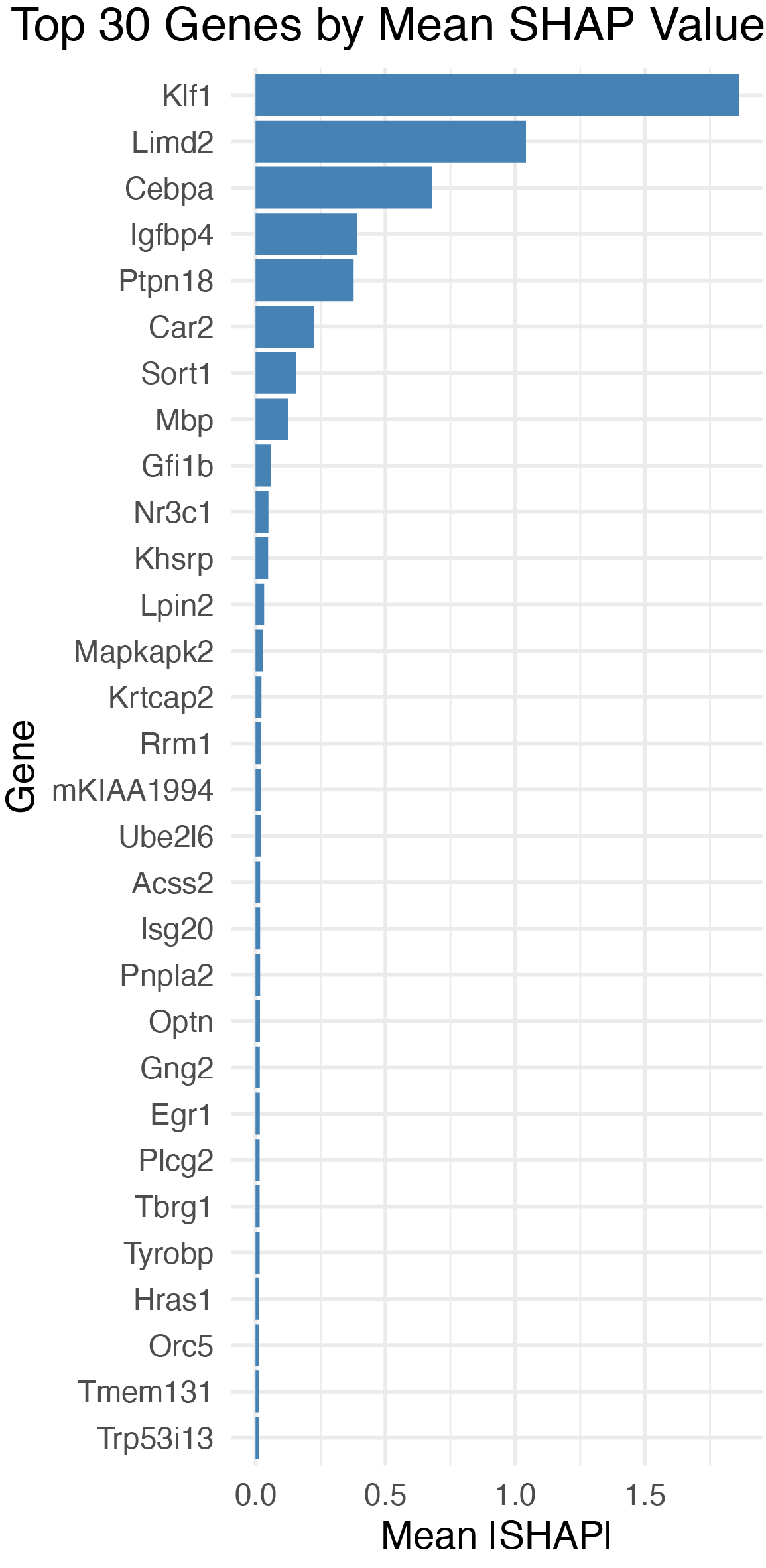

Bar plot of top driver genes

BarplotShap ranks genes by their mean absolute SHAP value and shows the top top_n genes. This is the quickest way to see which genes carry the most weight in separating the two lineages.

p <- BarplotShap(obj, top_n = 30)

ggsave(
  "Lineage_GM_vs_Lineage_ME/barplot_top_shap_genes_Lineage_GM_vs_Lineage_ME.pdf",
  plot = p, width = 4, height = 8, dpi = 300
)

p

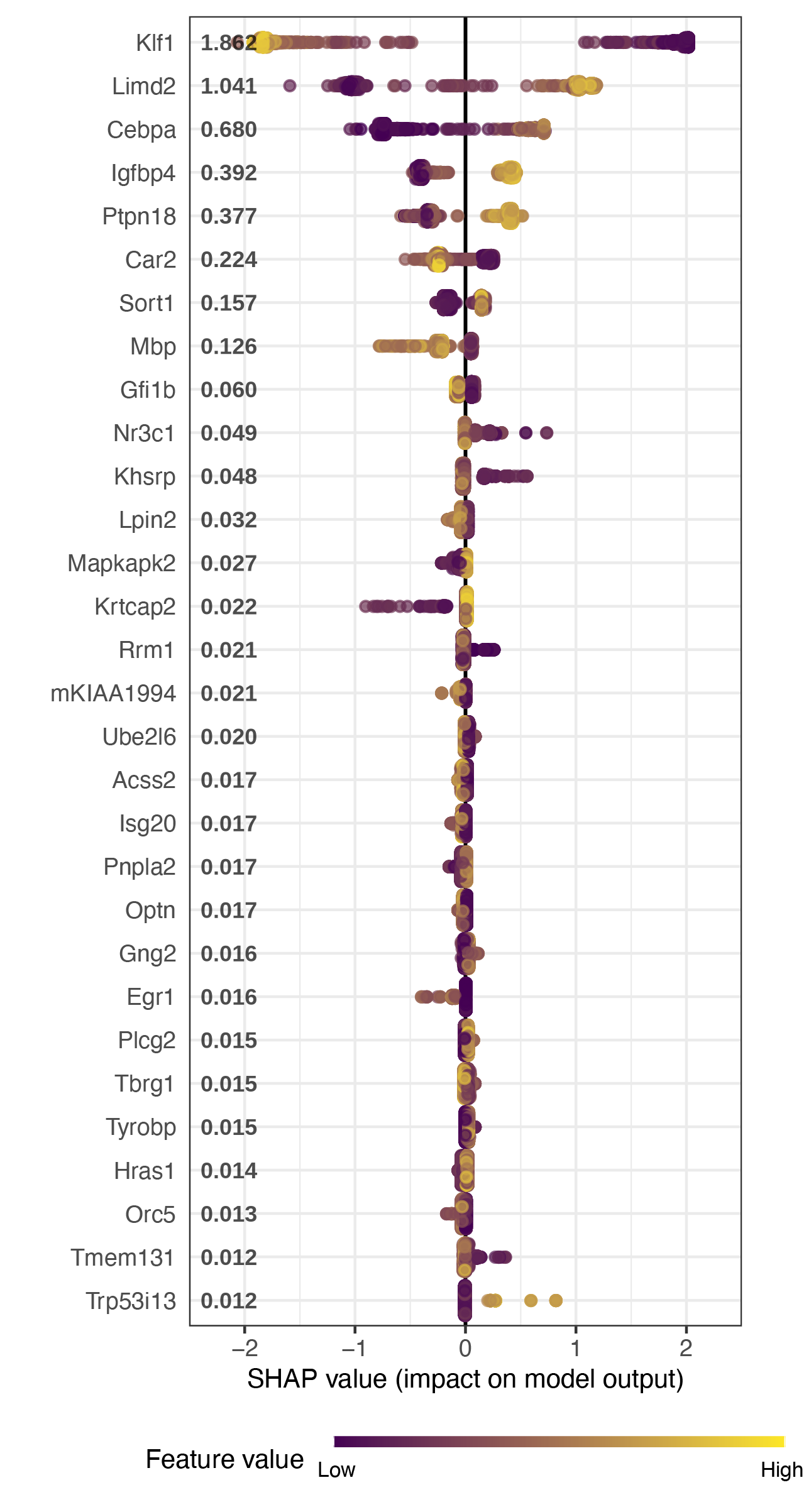

Beeswarm plot of SHAP values

BeeswarmplotShap shows the full distribution of SHAP values for each of the top genes. Each point is a single cell: its position on the x-axis is the gene’s SHAP value in that cell, and its color encodes the gene’s expression level (from min_color for low expression to max_color for high expression). This reveals not just which genes are important, but how they drive the classification — for example, whether high expression of a gene pushes cells toward the GM or the ME lineage.

p <- BeeswarmplotShap(
  obj,
  top_n = 30,
  min_color = "#440154",
  max_color = "#FDE725"
)

ggsave(
  "Lineage_GM_vs_Lineage_ME/beeswarm_top_shap_genes_Lineage_GM_vs_Lineage_ME.pdf",
  plot = p, width = 4, height = 8, dpi = 300
)

p

In this plot, genes near the top are the strongest drivers. A gene whose high-expression cells (yellow) sit on the positive side of the axis and whose low-expression cells (purple) sit on the negative side is one that is turned on specifically in one lineage and off in the other.

Troubleshooting: if BeeswarmplotShap errors with object ‘new_labels’ not found

Define new_labels <- NULL in your global environment before calling the function:

new_labels <- NULL

This is a known scoping issue in an upstream dependency (SHAPforxgboost) and the workaround can be removed once it is fixed upstream.

Interpretation

The key driver analysis identifies genes whose expression the model relies on to tell the two lineages apart. Because the ranking comes from a multivariate classifier rather than gene-by-gene testing, the top drivers tend to be the most informative markers of lineage commitment, accounting for the redundancy among co-expressed genes. Driver genes that are also transcription factors or hub genes of your co-expression modules are especially worth following up, since they are strong candidates for regulators of the lineage decision.
